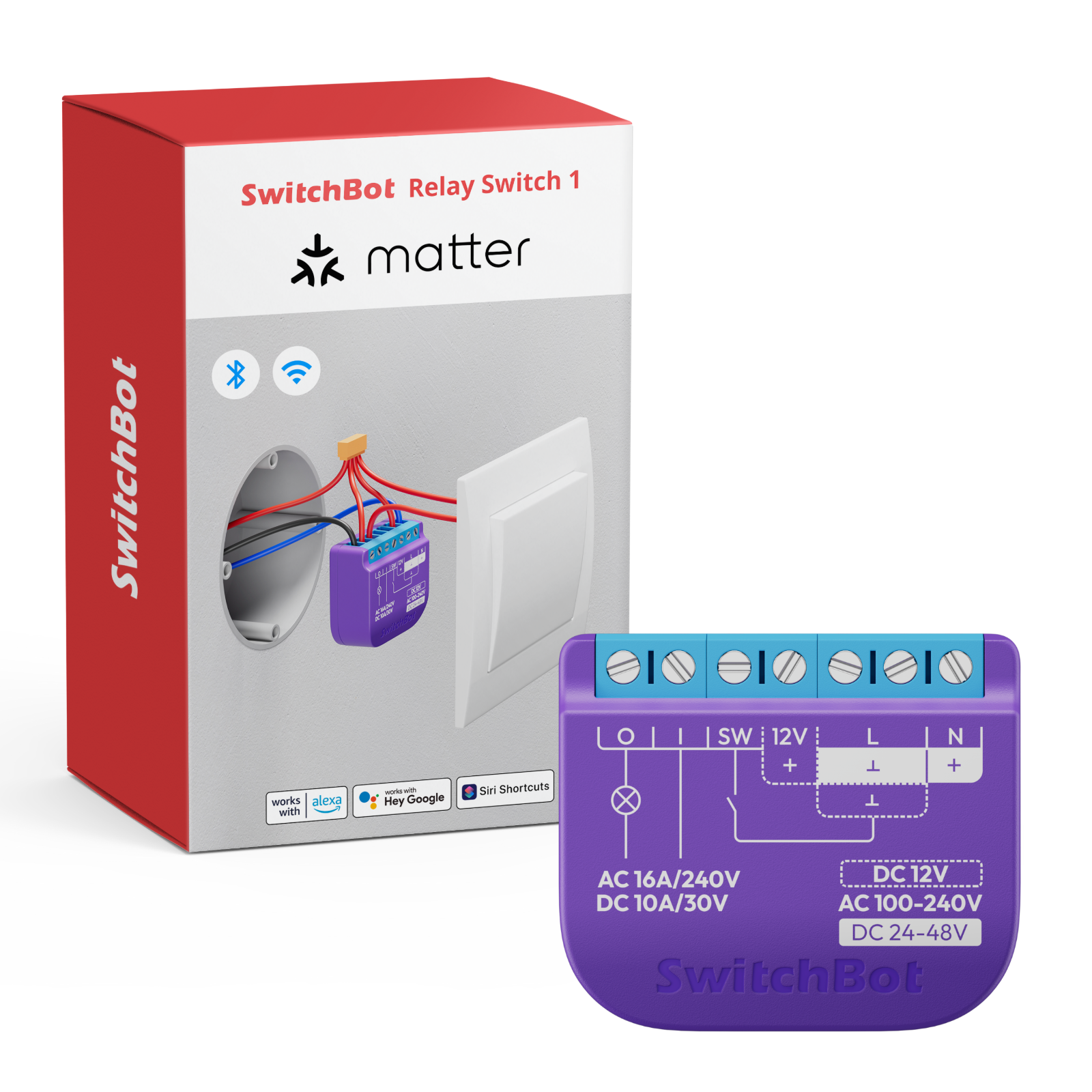

SwitchBot Relay Switch 1

Matter Certified Smart Relay with Bluetooth Repeater and Automation Control

The SwitchBot Relay Switch 1 is a compact and powerful device that enhances your smart home by enabling Matter support, extending Bluetooth connectivity, and automating traditional appliances. With fast installation and wide compatibility, it offers a reliable and secure way to control your home devices.

Key Features:

1. Matter Certified for Smart Home Integration
   Connect up to two SwitchBot Bluetooth devices and control them with Apple Home, Alexa, Google Home, or SmartThings through a single app.

2. Fast Local Control with Privacy Protection
   Matter technology ensures verified encryption standards for user privacy and offers faster local automation, even without internet access.

3. Bluetooth Repeater Function
   Extend Bluetooth connectivity up to 80 meters (environment dependent). Supports up to 10 SwitchBot Bluetooth devices simultaneously.

4. Upgrade Traditional Appliances
   Convert existing lights, garage doors, locks, and more into smart devices. No rewiring required—install in just 10 minutes.

5. Flexible Control Options
   Operate via Wi-Fi, Bluetooth, voice commands, or custom timers. Create automated routines such as watering plants on hot days.

6. Built-in Safety Features
   Flame-retardant V0 casing and over-temperature protection automatically cut off power in emergencies for added safety.

Specifications:

• Material: PC

• Size: 42 x 36 x 16 mm (1.6 x 1.4 x 0.6 in.)

• Weight: 27 g (0.9 oz.)

• Operating Temperature: -20°C to 40°C (-5°F to 105°F)

• Operating Humidity: 30% to 70% RH, non-condensing

• AC Input: 100–240 V, 50/60 Hz

• DC Input: 24–48 V, 12 V

• Max AC Output Voltage: 240 V

• Max DC Output Voltage: 30 V

• Max AC Output Current: 16 A

• Max DC Output Current: 10 A

• Connectivity: IEEE 802.11 b/g/n, 2.4 GHz Wi-Fi, Bluetooth Low Energy

Package Includes:

• 1 x SwitchBot Relay Switch 1

• 1 x User Manual

• 1 x Warranty Card
